Below are images of the model as of 10-26-09


What's been done so far:
A little rework here before pressing on with the seating and field details. I've revised the facade stanchion elements to reflect better reference drawings that came available after my initial attempt.

Next: I've decided to go ahead and build the seats since all of the geometry of the gray padded infield walls are tied to the seating sections - the seat rails being attached directly to the infield fence poles. I've already started on the straight backs. I'm still looking for dimensions for the curved back seats.

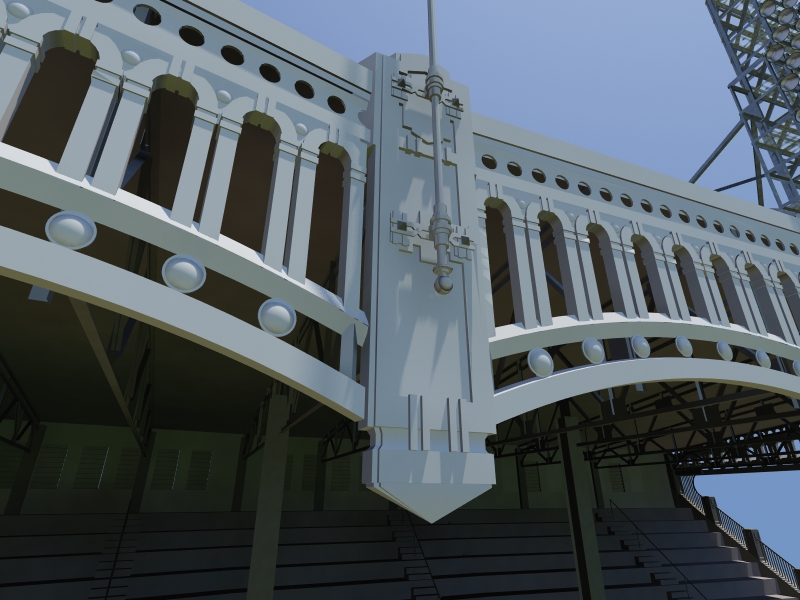

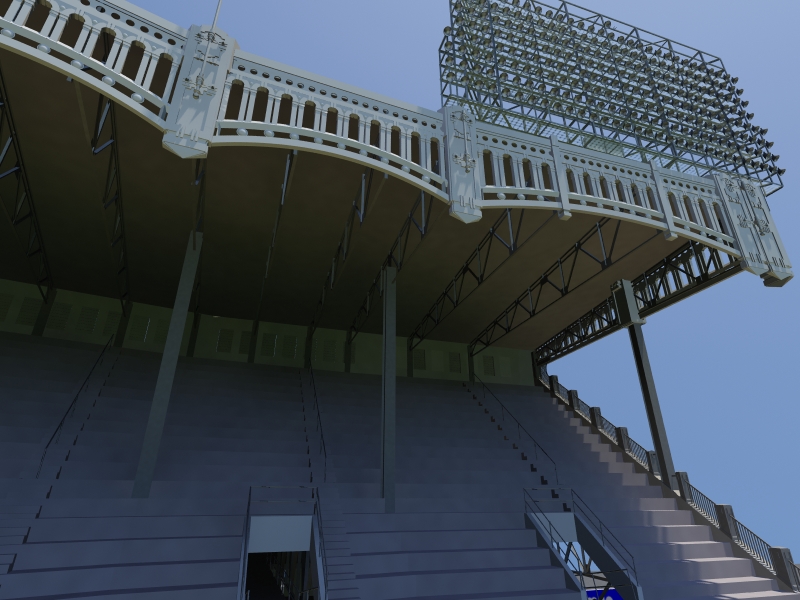

Revised facade stanchions with the correct flag pole mounting hardware. These flag poles are based on a 1923 plan, but I don't think they are quite what actually got installed. There's actually more detail I need to add at some point. Close up shot The end unit units shared a flag pole (before they got chopped when the lights got installed).


Below are images of the model as of 05-17-09


What's been done so far:

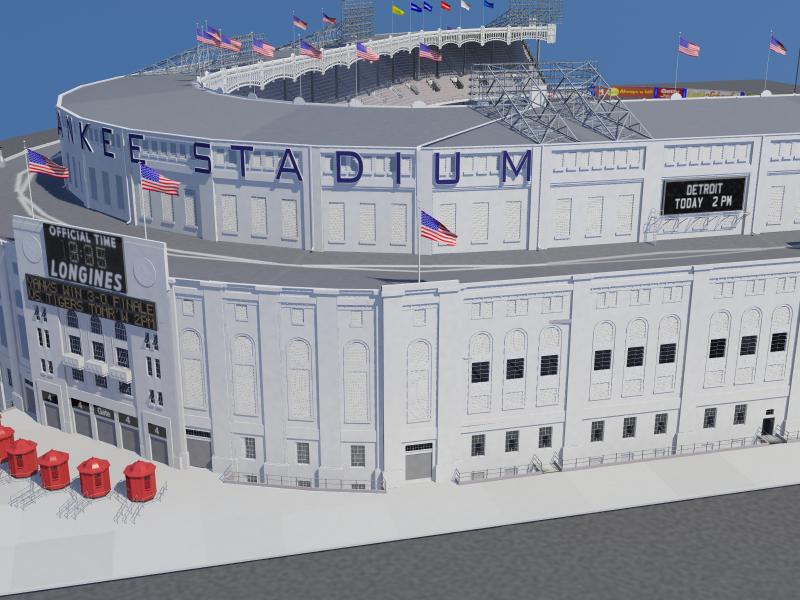

I've added the two side message boards (thanks once again to Dennis Concepcion for the texture map).

Next: Back inside to finish the stands and field elements.

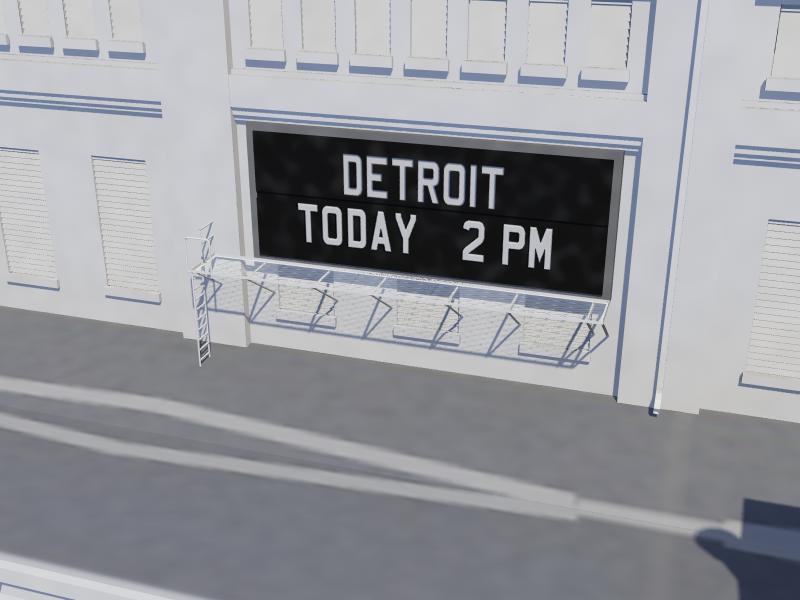

Right field side message board with catwalk and ladder. Longer shot. Left field side message board

Below are images of the model as of 05-06-09


What's been done so far:

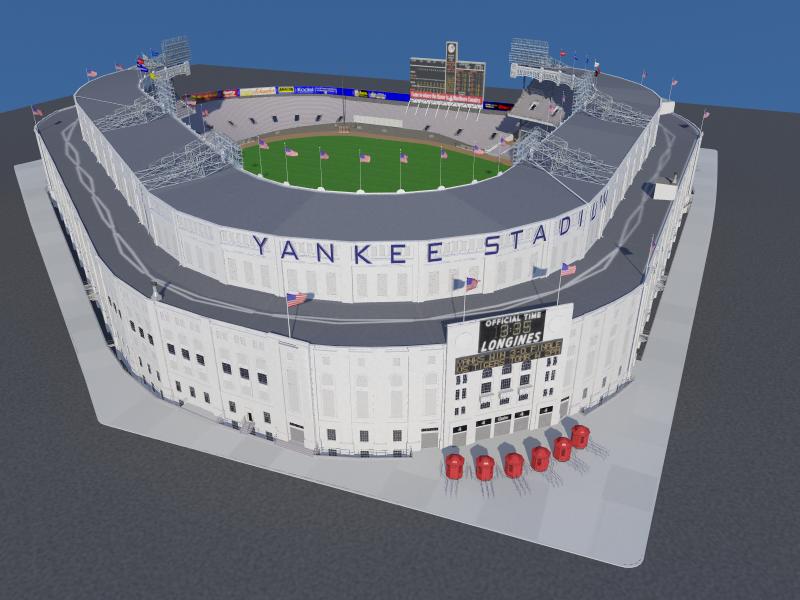

I've added the conduits supplying power to the lights and upper deck roof downspouts. I also revised the outer skin areas that were build during the 1928 and 1937 renovations, replacing the louvers with windows. American league flags have been added (thanks once again to Dennis Concepcion for the flag texture maps). I've also modified the texture map for the roof which now shows the drainage runs and some of the variations in the roof materials.

Next: Outside (left and right field) message boards.

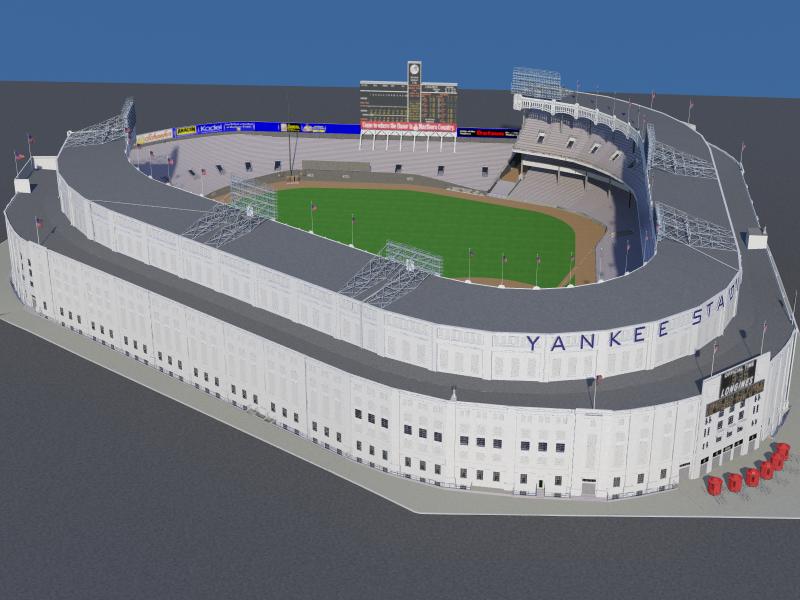

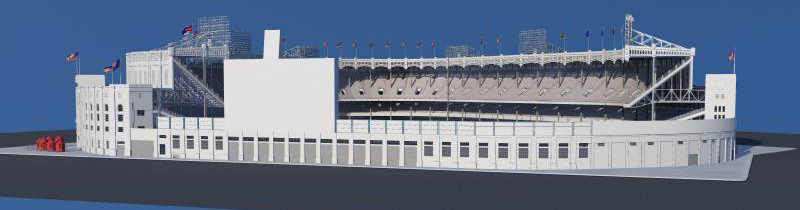

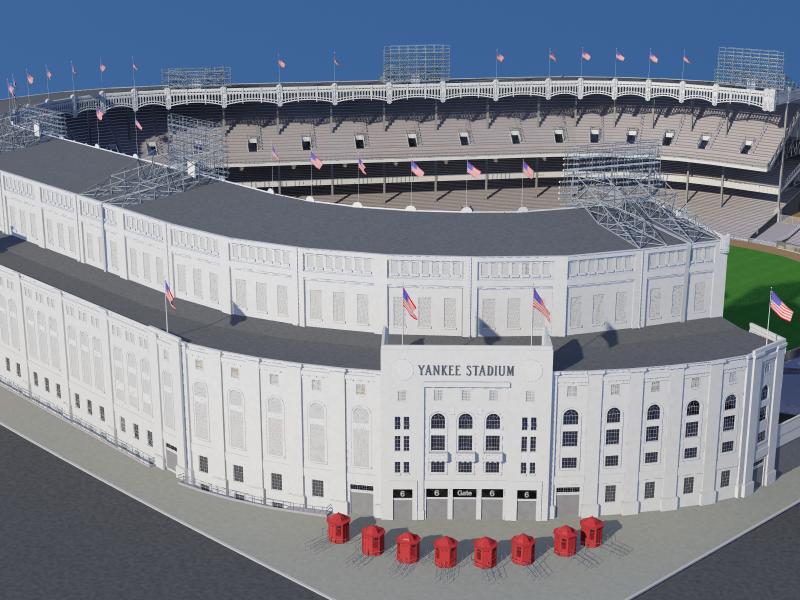

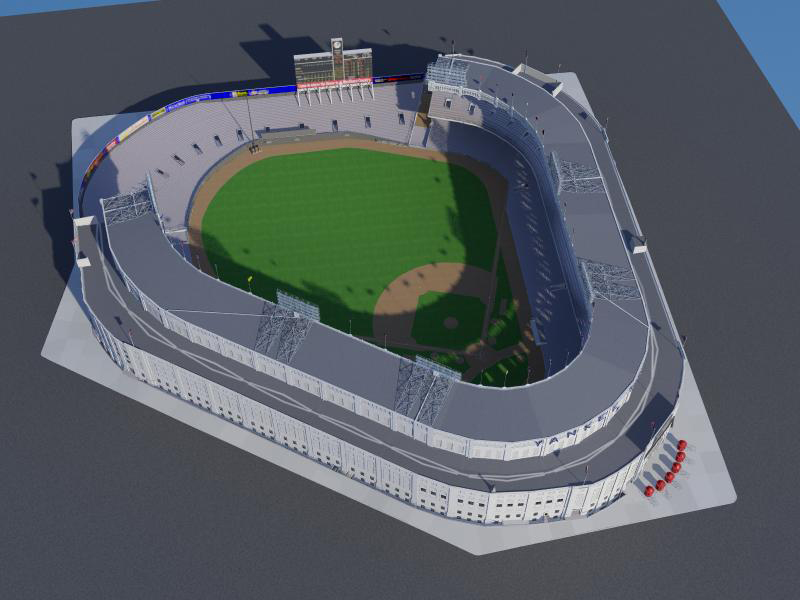

Rendering showing roof drainage runs. Higher angle. Another air shaft. Light tower electrical conduits and drainage downspouts. Close up shot showing downspouts Widows replaced louvers in Gate 6 area. Also around gate 2. Another air shaft. American league east team flags in order of standing for Sept. 29 1973. American league west team flags in order of standing for Sept. 29 1973.. Another angle. The old and the new. Another angle.
